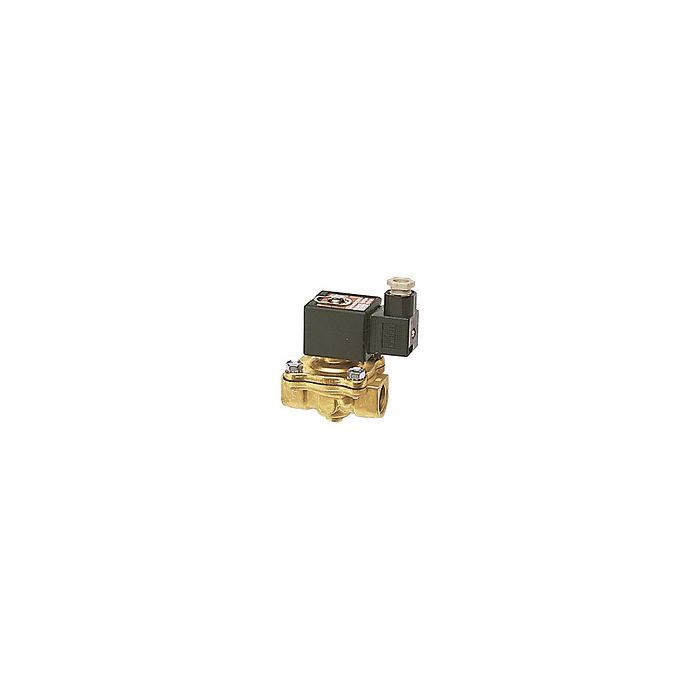

2/2-way solenoid valve, NO, force pilot operated, 230 V, Rp 3/8
In stock
SKU
102845
Customer product code
Type Number
MV 2216
Article name from customer
EAN-Code
4047322160070
2/2-way solenoid valve brass, NO, force pilot operated, 230 V, 50 - 60 Hz, Rp 3/... More
Productdata
2/2-way solenoid valve brass, NO, force pilot operated, 230 V, 50 - 60 Hz, Rp 3/8, NBR, Medium temp. -20 °C to 85 °C, PN 0 - 9 bar
Standard series, proven over many years, available in three different versions
- Directly operated
- Combined operation
- Pilot-operated
For all applications with compressed air, neutral gases or low-viscosity, neutral media.
Article No.
102845
Housing
brass
Sealant
NBR
Protection IP
IP 65 (with connector socket fitted)
Electrical connection
ISO 4400, cable socket (PG 11 P)
Min. operating pressure
0 bar
Max. operating pressure
9 bar
Min. medium temperature
-20 °C
Max. medium temperature
85 °C
Min. ambient temperature
-20 °C
Max. ambient temperature
50 °C
Internal parts
Stainless steel
Valve seat
Brass
Country of origin
DE
Thread
Rp 3/8
DN
16
Standard thread
Rp-thread acc. to ISO 7-1
Type
3
Function
normally open (NO)
A
80.0 mm
B
70.0 mm
REACH SVHC1 substance name
Lead
CAS no. SVHC 1
7439-92-1
RoHS materials notice
Rohs compliant
REACH Info
contains SVHC substance
Class name
MAX
Customs tariff number
84812090
Page No.
HK329
Downloads
Variants
| Art. No. | Type No. | Attributes | Thread | DN | Type | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 102846 | MV 2236 | Rp 3/8 | 16 | 3 | ||||
| 102847 | MV 2217 | Rp 1/2 | 16 | 3 | ||||
| 102848 | MV 2237 | Rp 1/2 | 16 | 3 | ||||
| 102849 | MV 2218 | Rp 3/4 | 19 | 3 | ||||
| 102850 | MV 2238 | Rp 3/4 | 19 | 3 | ||||
| 136148 | MV 2219 | Rp 1 | 25 | 3 | You can see the exact availability after logging in | €961.37 List price: €961.37 / piece Your price: €961.37 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 136149 | MV 2239 | Rp 1 | 25 | 3 | ||||
| 136150 | MV 2220 | Rp 1 1/4 | 28 | 3 | You can see the exact availability after logging in | €1,125.18 List price: €1,125.18 / piece Your price: €1,125.18 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
Alternate Articles
2/2 solenoid valve, NO, G 3/8, PN 0-12, NBR, comb. oper., 230V AC
Article No.: 129478
Type No.: MVB.38.MS.230.N.RZ.13
€349.89
List price:
€349.89 / piece
Your price:
€349.89 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
Quantity unit:
piece
Content:
piece
excl. VAT and shipping
You can see the exact availability after logging in
