Activated carbon filter »SYNTESI«, size2, G3/8, 0.003 mg/m³, RMSA

(List price: €136.23)

€136.23

(€136.23 / piece)

excl. VAT and shipping

In stock

SKU

144667

Type Number

5623C103

EAN-Code

4047322760157

Activated carbon filter »SYNTESI«, size 2, G 3/8, p1 max. = 13 bar, 0.003 mg/m³,... More

(€136.23 / piece)

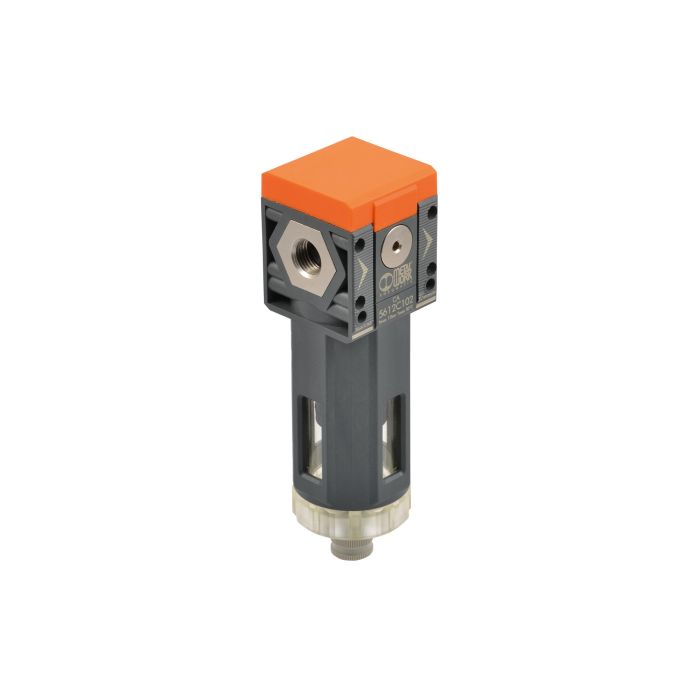

Exemplary illustration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

Activated carbon filter »SYNTESI«, size 2, G 3/8, p1 max. = 13 bar, 0.003 mg/m³, RMSA semi-automatic, T = -10 … 50 °C

Activated carbon filters absorb dirt particles (oils, solvents and hydrocarbons) from the compressed air.

Pre-filtration (5 µm) and oil filtration (0.01 µm) are strongly advised.

The RMSA drain closes at approx. 1 bar and drains when depressurized. It can be locked manually if required.

The cartridge must be replaced at set intervals as there is no difference in load loss between an efficient cartridge and a saturated one.

N.B.: to ensure the performance and duration stated on the data sheet, the load loss (ΔP) must not exceed 75 mbar.

On the front and back there is a port (G 1/8 for size 1 and G 1/4 for size 2) that can be used with pressure gauges, pressure switches or as an additional air outlet. The air taken from here is not filtered by the activated-carbon cartridge.

ATEX version on request!

Article No.

144667

Max. input pressure

13 bar

Min. temperature range

-10 °C

Max. temperature range

50 °C

Medium

0.01 μm filtered and depurated air or neutral gases

Housing

technopolymer

Sealant

NBR

Series

Syntesi

Bowl

Technopolymer

Residual oil content

0.003 mg/m³

Country of origin

Condensate drain

RMSA semi-automatic

Size

60.5 mm

178.0 mm

Class name

PLUS

Customs tariff number

84213925

Input

G 3/8

Output

G 3/8

38.2 mm

Output air purity class according to ISO 8573-1

1.7.1

- mm

Front and back port thread

G 1/4

Page No.

WEB

Downloads

Operating instructions

Datasheet

Variants

Art. No.	Type No.	Attributes	Size	Input	Output	Availability
144662	5610C100	1	without bushing	without bushing	You can see the exact availability after logging in	€86.53 List price: €86.53 / piece Your price: €86.53 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€86.53 / piece) excl. VAT and shipping You can see the exact availability after logging in
144663	5611C101	1	G 1/8	G 1/8	You can see the exact availability after logging in	€89.00 List price: €89.00 / piece Your price: €89.00 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€89.00 / piece) excl. VAT and shipping You can see the exact availability after logging in
144664	5612C102	1	G 1/4	G 1/4	You can see the exact availability after logging in	€89.00 List price: €89.00 / piece Your price: €89.00 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€89.00 / piece) excl. VAT and shipping You can see the exact availability after logging in
144665	5613C103	1	G 3/8	G 3/8	You can see the exact availability after logging in	€89.00 List price: €89.00 / piece Your price: €89.00 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€89.00 / piece) excl. VAT and shipping You can see the exact availability after logging in
144666	5620C100	2	without bushing	without bushing	You can see the exact availability after logging in	€123.69 List price: €123.69 / piece Your price: €123.69 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€123.69 / piece) excl. VAT and shipping You can see the exact availability after logging in
144668	5624C104	2	G 1/2	G 1/2	You can see the exact availability after logging in	€136.23 List price: €136.23 / piece Your price: €136.23 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€136.23 / piece) excl. VAT and shipping You can see the exact availability after logging in
144669	5625C105	2	G 3/4	G 3/4	You can see the exact availability after logging in	€146.00 List price: €146.00 / piece Your price: €146.00 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€146.00 / piece) excl. VAT and shipping You can see the exact availability after logging in
144670	5626C106	2	G 1	G 1	You can see the exact availability after logging in	€146.00 List price: €146.00 / piece Your price: €146.00 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€146.00 / piece) excl. VAT and shipping You can see the exact availability after logging in
