Precision pressure regulator »variobloc« Size 2, G 1, 0.1-3 bar

(List price: €151.47)

€151.47

(€151.47 / piece)

excl. VAT and shipping

In stock

SKU

149225

Type Number

VRP 62

EAN-Code

4047322584692

Precision pressure regulator »variobloc«, incl. pressure gauge, Size 2, G 1, Inp... More

(€151.47 / piece)

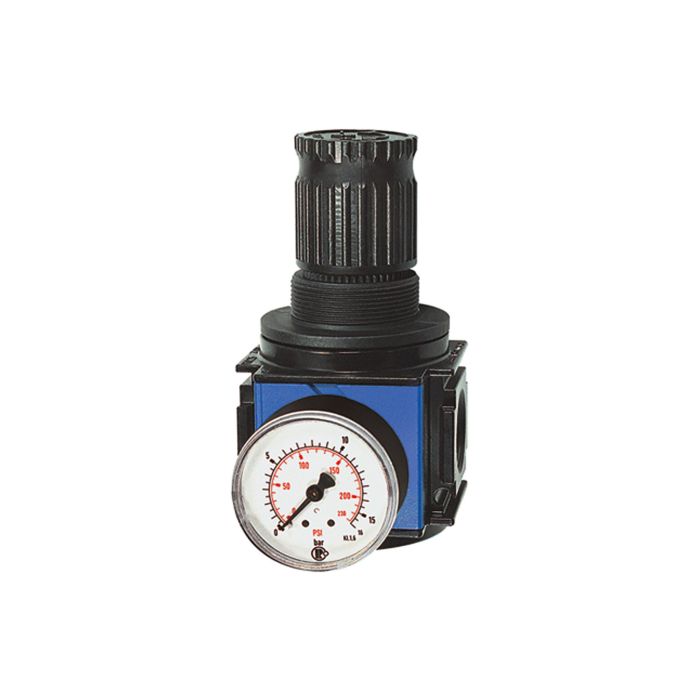

Exemplary illustration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

Precision pressure regulator »variobloc«, incl. pressure gauge, Size 2, G 1, Input pressure max. 25 bar, Control range 0.1-3 bar

Pre-pressure independent, reversible diaphragm pressure regulator with secondary venting for applications that require a precise pressure regulation. The line pressure is regulated by the pressure regulator to the set working pressure/secondary pressure and maintains this constantly regardless of pressure fluctuations and air consumption. The precision pressure regulator is characterised by a very low internal air consumption (< 1.5 l/min).

Article No.

149225

Thread

G 1

Size

Max. input pressure

25 bar

Housing

die-cast zinc

Sealant

NBR

Max. medium temperature

60 °C

Max. ambient temperature

60 °C

Spring bonnet

POM-brass

Flow rate

8000 l/min

Min. control range

0.1 bar

Max. control range

3 bar

Pressure gauge display min.

0 bar

Pressure gauge display max.

3 bar

125.0 mm

134.0 mm

33.0 mm

Series

variobloc

Flow rate measurement

at P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar

Country of origin

Customs tariff number

84811099

Class name

PLUS

Min. medium temperature

-10 °C

Min. ambient temperature

-10 °C

air consumption

Yes

Max. internal air consumption

1.5 l/min (depending on secondary pressure)

Page No.

HK081

Downloads

Operating instructions

P 1-467_e

Variants

Art. No.	Type No.	Attributes	Control range	Thread	Flow rate	Size	Availability
149212	VRP 22	0,1 - 3	G 1/4	2000	1	You can see the exact availability after logging in	€87.09 List price: €87.09 / piece Your price: €87.09 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€87.09 / piece) excl. VAT and shipping You can see the exact availability after logging in
149214	VRP 23	0,2 - 6	G 1/4	2000	1
149215	VRP 24	0,5 - 10	G 1/4	2000	1	You can see the exact availability after logging in	€87.09 List price: €87.09 / piece Your price: €87.09 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€87.09 / piece) excl. VAT and shipping You can see the exact availability after logging in
149216	VRP 32	0,1 - 3	G 3/8	3200	1
149217	VRP 33	0,2 - 6	G 3/8	3200	1	You can see the exact availability after logging in	€87.09 List price: €87.09 / piece Your price: €87.09 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€87.09 / piece) excl. VAT and shipping You can see the exact availability after logging in
149218	VRP 34	0,5 - 10	G 3/8	3200	1
149219	VRP 42	0,1 - 3	G 1/2	7000	2
149220	VRP 43	0,2 - 6	G 1/2	7000	2
