Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 10 bar

(List price: €205.76)

€205.76

(€205.76 / piece)

excl. VAT and shipping

In stock

SKU

149195

Type Number

VRB 63

EAN-Code

4047322584333

Pressure regulator, continuous pressure supply »variobloc«, Size 2, G 1, Input p... More

(€205.76 / piece)

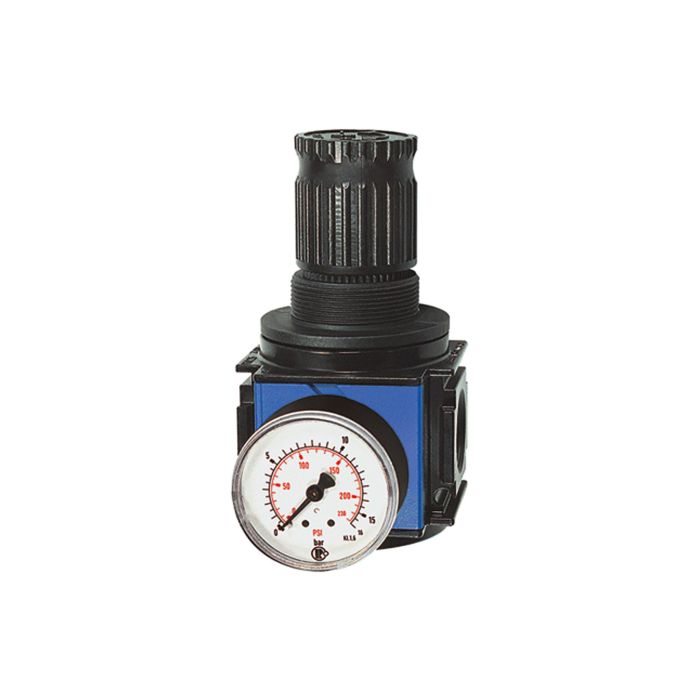

Exemplary illustration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Productdata

Downloads

Variants

accessories

Spareparts

Alternate Articles

Productdata

Pressure regulator, continuous pressure supply »variobloc«, Size 2, G 1, Input pressure max. 25 bar, Control range 0.5 - 10 bar

Diaphragm pressure regulators with self-relieving design for mounting side by side. The pressure setting can be locked by pushing the knob down. By assembling two or more controllers together, it is possible to supply several working air circuits with different output pressures via a single supply line.

Article No.

149195

Thread

G 1

Size

Max. input pressure

25 bar

Housing

die-cast zinc

Sealant

NBR

Max. medium temperature

80 °C

Max. ambient temperature

80 °C

Spring bonnet

POM-brass

Flow rate

6800 l/min

Min. control range

0.5 bar

Max. control range

10 bar

Pressure gauge display min.

0 bar

Pressure gauge display max.

10 bar

125.0 mm

134.0 mm

33.0 mm

Series

variobloc

Flow rate measurement

at P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar

Country of origin

Customs tariff number

84811099

Class name

PLUS

Connection rear

G 1/2

Page No.

HK080

Downloads

Operating instructions

P 1-466_e

Variants

Art. No.	Type No.	Attributes	Control range	Thread	Flow rate	Size	Availability
100651	VRB 22	0,5 - 6	G 1/4	1800	1
100652	VRB 23	0,5 - 10	G 1/4	1800	1	You can see the exact availability after logging in	€75.98 List price: €75.98 / piece Your price: €75.98 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€75.98 / piece) excl. VAT and shipping You can see the exact availability after logging in
100653	VRB 24	0,5 - 16	G 1/4	1800	1	You can see the exact availability after logging in	€69.37 List price: €69.37 / piece Your price: €69.37 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€69.37 / piece) excl. VAT and shipping You can see the exact availability after logging in
100654	VRB 32	0,5 - 6	G 3/8	1800	1
100655	VRB 33	0,5 - 10	G 3/8	1800	1	You can see the exact availability after logging in	€75.98 List price: €75.98 / piece Your price: €75.98 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€75.98 / piece) excl. VAT and shipping You can see the exact availability after logging in
100656	VRB 34	0,5 - 16	G 3/8	1800	1	You can see the exact availability after logging in	€69.37 List price: €69.37 / piece Your price: €69.37 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€69.37 / piece) excl. VAT and shipping You can see the exact availability after logging in
149188	VRB 42	0,5 - 6	G 1/2	5800	2	You can see the exact availability after logging in	€149.69 List price: €149.69 / piece Your price: €149.69 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€149.69 / piece) excl. VAT and shipping You can see the exact availability after logging in
149189	VRB 43	0,5 - 10	G 1/2	5800	2	You can see the exact availability after logging in	€149.69 List price: €149.69 / piece Your price: €149.69 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€149.69 / piece) excl. VAT and shipping You can see the exact availability after logging in
