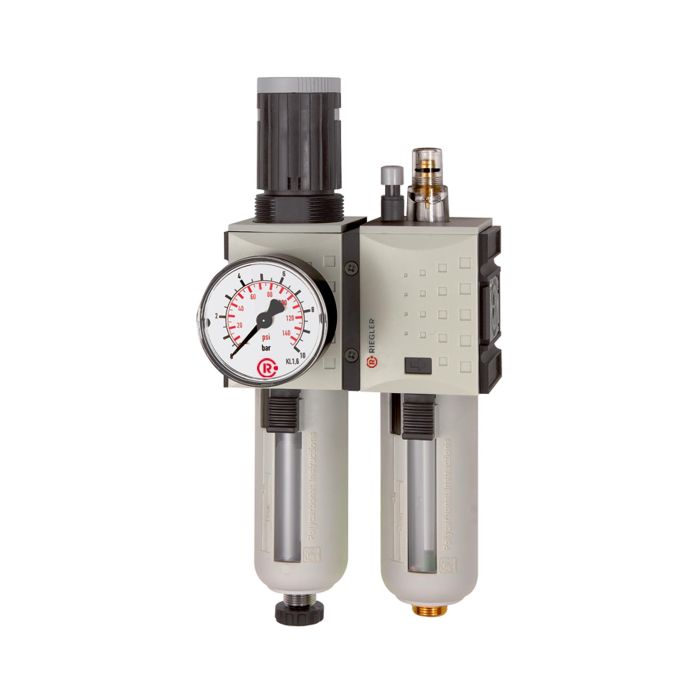

Service unit 2-part »FUTURA«, PC, Size 4, G 1, 0.1-2, Semi a.

(List price: €405.18)

€405.18

(€405.18 / piece)

excl. VAT and shipping

In stock

SKU

152360

Type Number

FU 606-2

EAN-Code

4047322601078

Service unit 2-part »FUTURA« with PC container, Protective cage and pressure gau... More

(€405.18 / piece)

Exemplary illustration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

Service unit 2-part »FUTURA« with PC container, Protective cage and pressure gauge, Size 4, G 1, Control range 0.1 - 2 bar, Semi

Two-piece service units with excellent flow rates in modern design.

Lockable diaphragm pressure regulator with secondary ventilation, oil can be filled without interrupting operation.

Article No.

152360

Min. input pressure

1.5 bar

Max. input pressure

16 bar

Min. temperature range

-10 °C

Max. temperature range

50 °C

Medium

Compressed air, neutral gases

Housing

PA66 GF60

Connecting thread

Material: Die-cast zinc

Sealant

NBR

Diaphragms

NBR

Max. internal air consumption

1.5 l/min (depending on secondary pressure)

Flow rate measurement

at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar

Series

FUTURA

Bowl

Polycarbonate container with protective cage

Filter element

Cellpor (PE)

Filter rating

5 µm

Sight dome

Country of origin

Thread

G 1

Flow rate

12000 l/min

Min. control range

0.1 bar

Max. control range

2 bar

Condensate drain

semi-automatic

Pressure gauge display min.

0 bar

Pressure gauge display max.

2.5 bar

Size

170.0 mm

326.0 mm

137.0 mm

REACH SVHC1 substance name

Lead

CAS no. SVHC 1

7439-92-1

RoHS materials notice

Rohs compliant

REACH Info

contains SVHC substance

air consumption

Yes

Class name

MAX

Customs tariff number

84811005

Page No.

HK131

Downloads

Operating instructions

5-22_e

Variants

Art. No.	Type No.	Attributes	Control range	Connecting thread	Thread	Flow rate	Size	Availability
152344	FU 601-1	0,1 - 1	Material: Die-cast zinc	G 1/4	1750	1	You can see the exact availability after logging in	€99.68 List price: €99.68 / piece Your price: €99.68 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€99.68 / piece) excl. VAT and shipping You can see the exact availability after logging in
152345	FU 601-2	0,1 - 2	Material: Die-cast zinc	G 1/4	1750	1	You can see the exact availability after logging in	€99.68 List price: €99.68 / piece Your price: €99.68 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€99.68 / piece) excl. VAT and shipping You can see the exact availability after logging in
152346	FU 601-4	0,2 - 4	Material: Die-cast zinc	G 1/4	1750	1	You can see the exact availability after logging in	€99.68 List price: €99.68 / piece Your price: €99.68 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€99.68 / piece) excl. VAT and shipping You can see the exact availability after logging in
100219	FU 601	0,5 - 8	Material: Die-cast zinc	G 1/4	1750	1	You can see the exact availability after logging in	€101.58 List price: €101.58 / piece Your price: €101.58 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€101.58 / piece) excl. VAT and shipping You can see the exact availability after logging in
152347	FU 601-10	0,5 - 10	Material: Die-cast zinc	G 1/4	1750	1	You can see the exact availability after logging in	€99.68 List price: €99.68 / piece Your price: €99.68 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€99.68 / piece) excl. VAT and shipping You can see the exact availability after logging in
152348	FU 601-16	0,5 - 16	Material: Die-cast zinc	G 1/4	1750	1	You can see the exact availability after logging in	€99.68 List price: €99.68 / piece Your price: €99.68 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€99.68 / piece) excl. VAT and shipping You can see the exact availability after logging in
152349	FU 602-1	0,1 - 1	Material: Die-cast zinc	G 3/8	1750	1	You can see the exact availability after logging in	€99.68 List price: €99.68 / piece Your price: €99.68 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€99.68 / piece) excl. VAT and shipping You can see the exact availability after logging in
152350	FU 602-2	0,1 - 2	Material: Die-cast zinc	G 3/8	1750	1	You can see the exact availability after logging in	€99.68 List price: €99.68 / piece Your price: €99.68 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€99.68 / piece) excl. VAT and shipping You can see the exact availability after logging in
