Service unit 3-part »Standard«, Metal container, Size 2, G 3/8

In stock

SKU

101082

Type Number

850 B/M

EAN-Code

4047322121347

Service unit 3-part »Standard«, Metal container, metal drip cap, Size 2, G 3/8, ... More

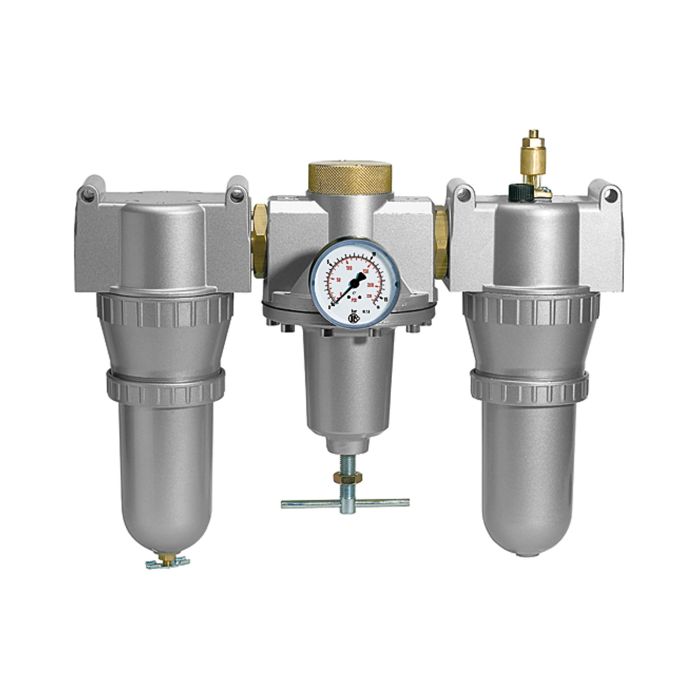

Exemplary illustration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

Service unit 3-part »Standard«, Metal container, metal drip cap, Size 2, G 3/8, Input press. max. 25 bar, Control range 0.5-16 bar

Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,

with self-relieving design, centrifugal separator and proportional lubricator.

Article No.

101082

Type No.

850 B/M

Thread

G 3/8

Size

Housing

die-cast zinc / aluminium, painted silver

Sealant

NBR

Min. medium temperature

-10 °C

Max. medium temperature

60 °C

Min. ambient temperature

-10 °C

Max. ambient temperature

60 °C

Flow rate

1400 l/min

Min. control range

0.5 bar

Max. control range

16 bar

Pressure gauge display min.

0 bar

Pressure gauge display max.

25 bar

Condensate drain

manual

Pressure gauge Ø

50 mm

Max. input pressure

25 bar

Sight dome

Zinc-glass-NBR

Filter rating

40 µm

Bowl

Metal container

232.0 mm

210.0 mm

51.0 mm

Series

Standard

Flow rate measurement

at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar

Country of origin

Customs tariff number

84811005

Class name

EASY

Page No.

HK041

Downloads

Operating instructions

6-10_e

Variants

Art. No.	Type No.	Attributes	Control range	Thread	Flow rate	DN	Availability
101080	845 B/M	0,5 - 16	G 1/4	600	6	1	€155.98 List price: €155.98 / piece Your price: €155.98 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€155.98 / piece) excl. VAT and shipping
101081	847 K/M	0,5 - 16	G 3/8	600	6	1	€155.98 List price: €155.98 / piece Your price: €155.98 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€155.98 / piece) excl. VAT and shipping
129495	850 B/M.2	0,5 - 16	G 3/8	1400	6	2	€204.53 List price: €204.53 / piece Your price: €204.53 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€204.53 / piece) excl. VAT and shipping
101083	850 C/M	0,5 - 16	G 1/2	3200	15	3	€237.41 List price: €237.41 / piece Your price: €237.41 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€237.41 / piece) excl. VAT and shipping
101084	850 D/M	0,5 - 16	G 3/4	3200	20	3	€427.33 List price: €427.33 / piece Your price: €427.33 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€427.33 / piece) excl. VAT and shipping
101085	850 E/M	0,5 - 16	G 1	3200	25	3	€427.33 List price: €427.33 / piece Your price: €427.33 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€427.33 / piece) excl. VAT and shipping
101086	850 F/M	0,5 - 16	G 1 1/4	5000	25	4	€860.30 List price: €860.30 / piece Your price: €860.30 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€860.30 / piece) excl. VAT and shipping
101087	850 H/M	0,5 - 16	G 1 1/2	5000	35	4	€819.08 List price: €819.08 / piece Your price: €819.08 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€819.08 / piece) excl. VAT and shipping
