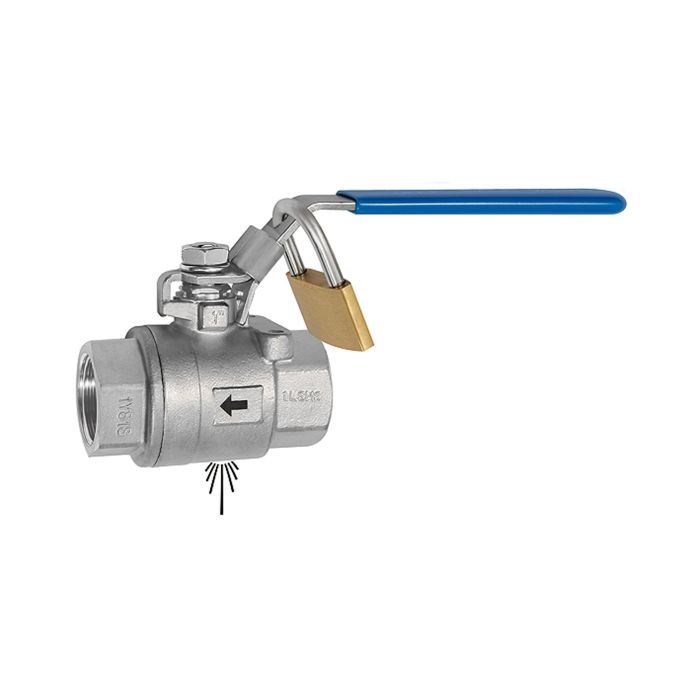

Stainless steel ball valve, lockable, venting hole, Rp 1
In stock
SKU
103443
Customer product code
Type Number
396.06
Article name from customer
EAN-Code
4047322246873
Stainless steel ball valve, lockable, venting hole M5, operating temp. -20 °C to... More
Productdata
Stainless steel ball valve, lockable, venting hole M5, operating temp. -20 °C to 100 °C, Rp 1, DN 25, PN max. 10 bar
Stainless steel ball valves.
Specially designed for pneumatic applications.
The ball valve can be locked manually and has a relief port.
Article No.
103443
Ball seal
PTFE / NBR
Stem seal
PTFE
Hand lever
stainless steel - PVC coated
Relief port
M5
Standard thread
Rp-thread acc. to ISO 7-1
DN
25
A
165.0 mm
L
88.0 mm
B
71.0 mm
Material
stainless steel
