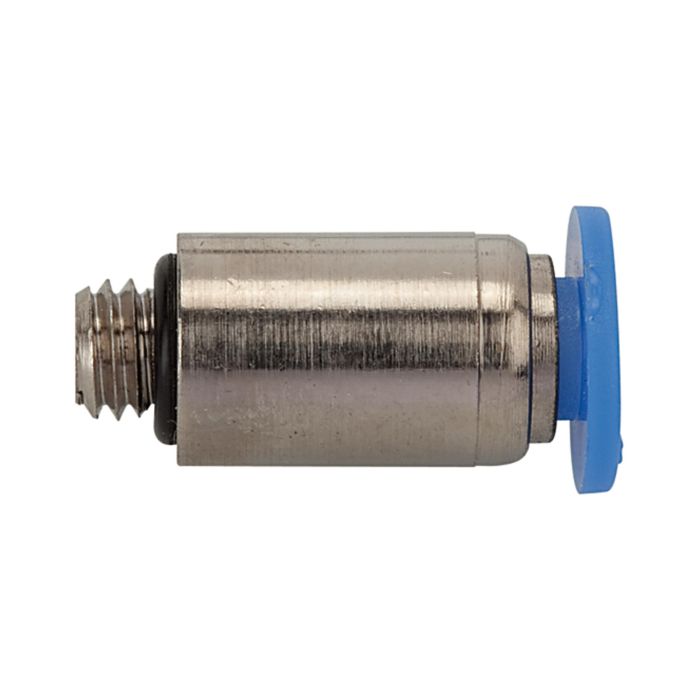

Straight push-in fitting »Blue Series« mini, round, G 1/8
In stock
SKU
109025
Customer product code
Type Number
POCG-186
Article name from customer
EAN-Code
4047322264808
Straight push-in fitting »Blue Series« mini, round, G 1/8, for hose exterior Ø 6... More
Productdata
Straight push-in fitting »Blue Series« mini, round, G 1/8, for hose exterior Ø 6 mm, pmax 10 bar
Push-in fittings series manufactured in plastic and nickel-plated brass.
Space-saving miniature design.
Article No.
109025
Min. temperature range
0 °C
Max. temperature range
60 °C
Medium
compressed air
Sealant
NBR
Series
Blue series mini
Min. working pressure
-0.95 bar
Max. working pressure
10 bar
Material
plastic and nickel-plated brass
Applications
Compressed air systems, automotive,packaging industry,vacuum
Sleeve
Plastic
Recommended hose
PU, PA (nylon)
Thread
G 1/8 ET
Standard thread
DIN EN ISO 228-1
for tube O.D.
6 mm
Hexagon socket head
4 mm
L1
17.6 mm
REACH SVHC1 substance name
Lead
CAS no. SVHC 1
7439-92-1
RoHS materials notice
Rohs compliant
REACH Info
contains SVHC substance
Class name
EASY
Customs tariff number
39174000
Country of origin
CN
Page No.
WEB
