Straight push-in fitting »click-clock« G 1/4 o., hose ext. Ø 12

(List price: €3.70)

€3.70

(€3.70 / piece)

excl. VAT and shipping

In stock

SKU

108563

Type Number

745.014-12

EAN-Code

4047322271943

Straight push-in fitting »click-clock«, G 1/4 o., for hose exterior Ø 12, Workin... More

For the sake of the environment: Order this item in increments of 10 to avoid repackaging.

(€3.70 / piece)

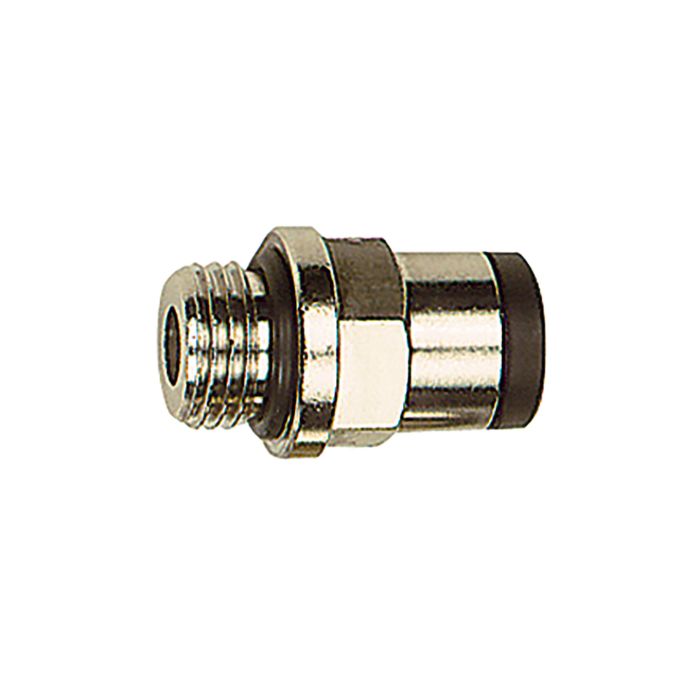

Exemplary illustration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Productdata

Downloads

Variants

accessories

Alternate Articles

Productdata

Straight push-in fitting »click-clock«, G 1/4 o., for hose exterior Ø 12, Working pressure -0.99 to 16 bar, nickel-plated brass

The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass.

Advantages of this new, optimised series:

Much easier connection and disconnection of the hose, even with repeated mounting
Can also be used for non-calibrated hoses
Suitable for vacuum operation

Article No.

108563

Medium

compressed air

Sealant

NBR

Series

click-clock

Min. working pressure

-0.99 bar

Max. working pressure

16 bar

Material

nickel-plated brass

Applications

Compressed air systems, vacuum

Min. operating temperature

-20 °C

Max. operating temperature

80 °C

Sleeve

Hostaform

Clamping ring

Stainless steel

Recommended hose

PA, PU

Thread

G 1/4 ET

a/f

19 mm

Outer hex

with

for tube O.D.

12 mm

Hexagon socket head

7 mm

Version

with O-ring

30.5 mm

REACH SVHC1 substance name

Lead

CAS no. SVHC 1

7439-92-1

RoHS materials notice

Rohs compliant

REACH Info

contains SVHC substance

Class name

PLUS

Customs tariff number

74122000

Country of origin

7.2 mm

21.0 mm

Page No.

HK639

Downloads

Operating instructions

P 6-326_e

Decision-guidance_Push-in-fittings

Variants

Art. No.	Type No.	Attributes	Thread	a/f	Outer hex	for tube O.D.	Hexagon socket head	Availability
108547	745.003-3	M3 ET	Ø 5.8	without	3	1.5	You can see the exact availability after logging in	€2.45 List price: €2.45 / piece Your price: €2.45 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€2.45 / piece) excl. VAT and shipping You can see the exact availability after logging in
108548	745.005-3	M5 ET	Ø 5.8	without	3	2	You can see the exact availability after logging in	€2.45 List price: €2.45 / piece Your price: €2.45 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€2.45 / piece) excl. VAT and shipping You can see the exact availability after logging in
108549	745.005-4	M5 ET	Ø 9	without	4	2.5	You can see the exact availability after logging in	€1.96 List price: €1.96 / piece Your price: €1.96 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€1.96 / piece) excl. VAT and shipping You can see the exact availability after logging in
108550	745.005-5	M5 ET	Ø 12	without	5	2.5	You can see the exact availability after logging in	€2.43 List price: €2.43 / piece Your price: €2.43 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€2.43 / piece) excl. VAT and shipping You can see the exact availability after logging in
108551	745.005-6	M5 ET	Ø 11	without	6	2.5	You can see the exact availability after logging in	€1.96 List price: €1.96 / piece Your price: €1.96 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€1.96 / piece) excl. VAT and shipping You can see the exact availability after logging in
108552	745.007-4	M7 ET	Ø 9	without	4	3	You can see the exact availability after logging in	€2.45 List price: €2.45 / piece Your price: €2.45 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€2.45 / piece) excl. VAT and shipping You can see the exact availability after logging in
108553	745.007-6	M7 ET	Ø 11	without	6	4	You can see the exact availability after logging in	€2.45 List price: €2.45 / piece Your price: €2.45 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€2.45 / piece) excl. VAT and shipping You can see the exact availability after logging in
108554	745.018-4	G 1/8 ET	10	with	4	3	You can see the exact availability after logging in	€1.96 List price: €1.96 / piece Your price: €1.96 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€1.96 / piece) excl. VAT and shipping You can see the exact availability after logging in
