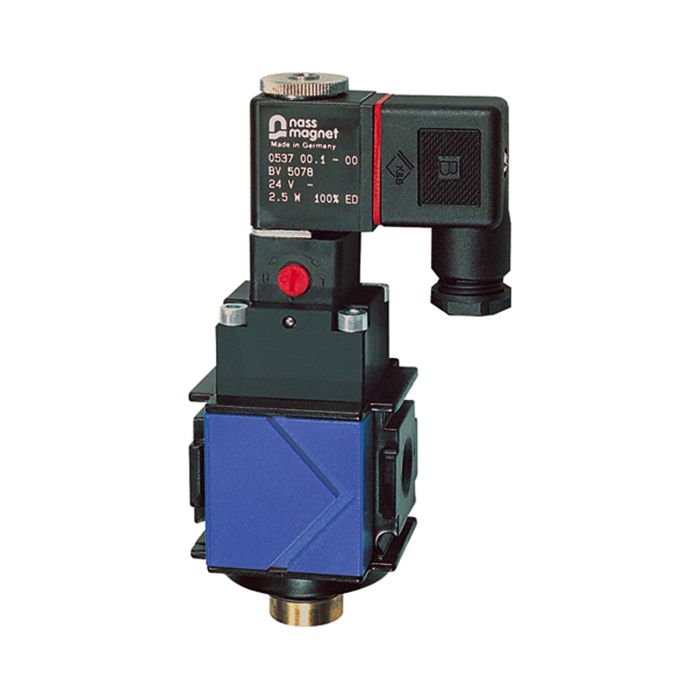

Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 1, G 1/4

In stock

SKU

100732

Type Number

VS 22

EAN-Code

4047322169523

Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 1, G 1/4, Working pressu... More

Exemplary illustration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Productdata

Downloads

Variants

accessories

Spareparts

Alternate Articles

Productdata

Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 1, G 1/4, Working pressure 3 - 10 bar

For pressurising and relieving pneumatic systems. 3/2-way type including silencer.

Ideal as the main "on" valve for service units.

The pressure in the line is exhausted when the valve is switched off.

Article No.

100732

Thread

G 1/4

Size

Min. working pressure

3 bar

Max. working pressure

10 bar

Flow rate

2200 l/min

48.0 mm

147.0 mm

108.0 mm

Series

variobloc

Flow rate measurement

at P1 = 6 bar and pressure drop Δp = 1 bar

Electrical connection

connector socket PG 9, type B, EN 175301-803

Protection IP

IP 65 acc. to DIN 40050

Operating voltage

24 V DC

Country of origin

Customs tariff number

84818059

REACH SVHC1 substance name

Lead

CAS no. SVHC 1

7439-92-1

RoHS materials notice

Rohs compliant

REACH Info

contains SVHC substance

Class name

PLUS

Page No.

HK090

Downloads

Operating instructions

7-10_e

Variants

Art. No.	Type No.	Attributes	Thread	Flow rate
100733	VS 23	G 3/8	2600	1
100734	VS 24	G 1/2	3300	2
100735	VS 25	G 3/4	3800	2
100736	VS 26	G 1	3800	2

accessories

Mounting bracket and 2 screws, for »variobloc«, Size 1

Article No.: 100748

Type No.: VZ 718

€11.86

(€11.86 / piece)

excl. VAT and shipping

Compact connecting set, for »variobloc«, Size 1, G 1/4

Article No.: 100750

Type No.: VZ 101

€5.01

(€5.01 / piece)

excl. VAT and shipping

Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4

Article No.: 100754

Type No.: VZ 201

€8.34

(€8.34 / piece)

excl. VAT and shipping

Comfort connecting set, for »variobloc«, Size 1, G 1/4

Article No.: 100760

Type No.: VZ 401

€30.02

(€30.02 / piece)

excl. VAT and shipping

Spareparts

Equipment plug B shape acc. to EN175301-803, Cable connection PG9

Article No.: 100409

Type No.: 1920.9B

€8.94

(€8.94 / piece)

excl. VAT and shipping

Solenoid coil 24 V DC, for switch valve (3/2-way valve)

Article No.: 100740

Type No.: 400-447-142

€54.15

(€54.15 / piece)

excl. VAT and shipping

Alternate Articles

3/2-way valve »FUTURA«, electr. actuated, 24 V DC, Size 1, G 1/4

Article No.: 100294

Type No.: FU 923

€104.86

(€104.86 / piece)

excl. VAT and shipping
