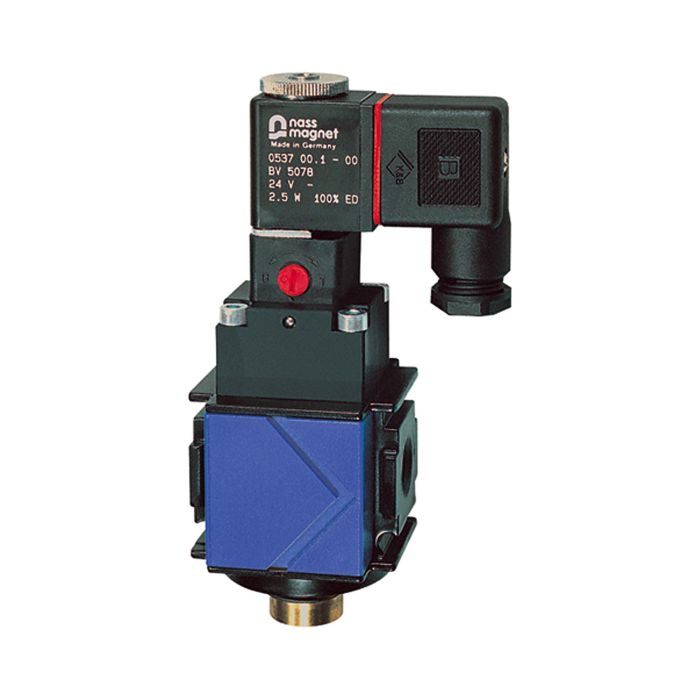

Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 2, G 3/4
In stock
SKU
100735
Customer product code
Type Number
VS 25
Article name from customer
EAN-Code
4047322212656
Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 2, G 3/4, Working pressu... More
Productdata
Switch valve (3/2-way valve) »variobloc«, 24 V DC, Size 2, G 3/4, Working pressure 3 - 10 bar
For pressurising and relieving pneumatic systems. 3/2-way type including silencer.
Ideal as the main "on" valve for service units.
The pressure in the line is exhausted when the valve is switched off.
Article No.
100735
Thread
G 3/4
Size
2
Min. working pressure
3 bar
Max. working pressure
10 bar
Flow rate
3800 l/min
A
70.0 mm
B
157.0 mm
C
113.0 mm
Series
variobloc
Flow rate measurement
at P1 = 6 bar and pressure drop Δp = 1 bar
Electrical connection
connector socket PG 9, type B, EN 175301-803
Protection IP
IP 65 acc. to DIN 40050
Operating voltage
24 V DC
Country of origin
DE
Customs tariff number
84818059
REACH SVHC1 substance name
Lead
CAS no. SVHC 1
7439-92-1
RoHS materials notice
Rohs compliant
REACH Info
contains SVHC substance
Class name
PLUS
Page No.
HK090
